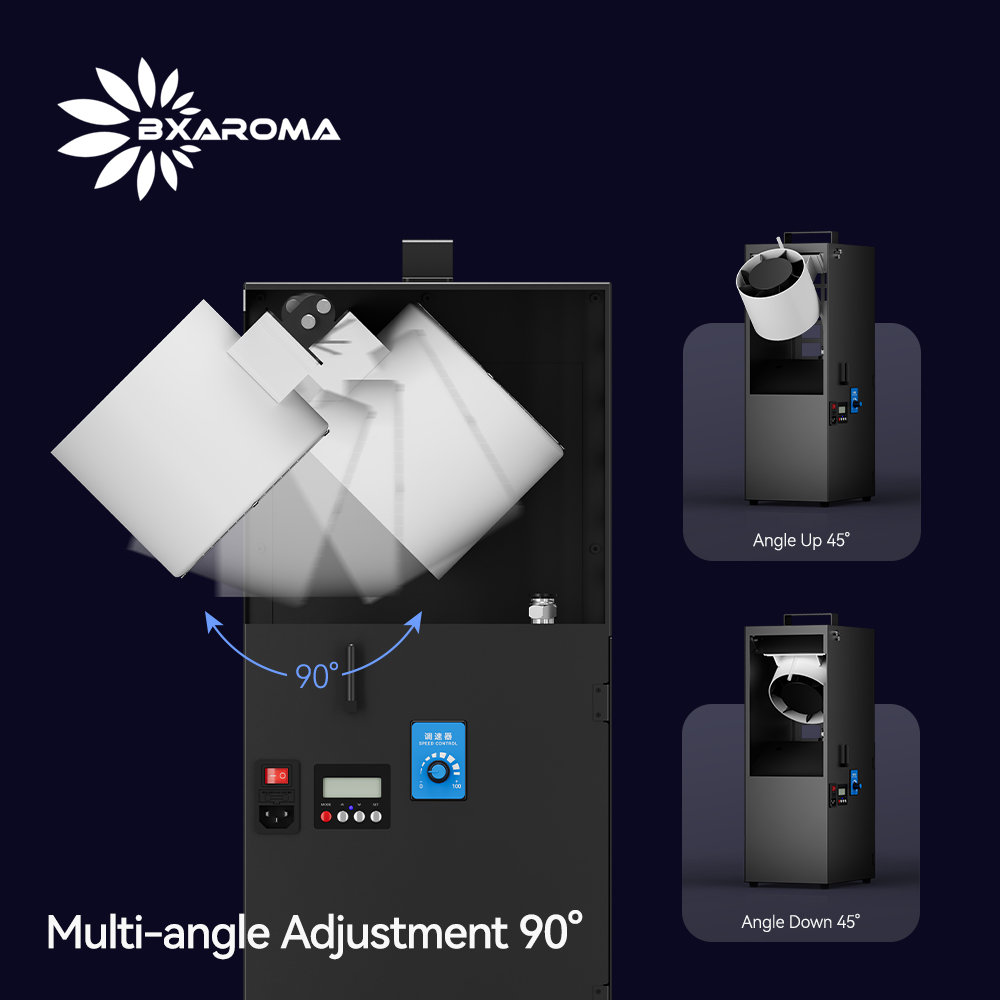

The B5000A Outdoor Scent Machine is a high-power commercial fragrance diffuser designed for large events, outdoor entertainment areas, exhibition venues, concerts, and semi-open hospitality spaces. Combining turbo-assisted diffusion, adjustable multi-angle fragrance outlets, and two-fluid atomization technology, it provides flexible scent distribution for event environments where airflow and venue layouts can vary.
| Model |
Machine Size |
Power |
Coverage Area |
Installation |
N.W / G.W |
| B5000A Scent Diffuser |

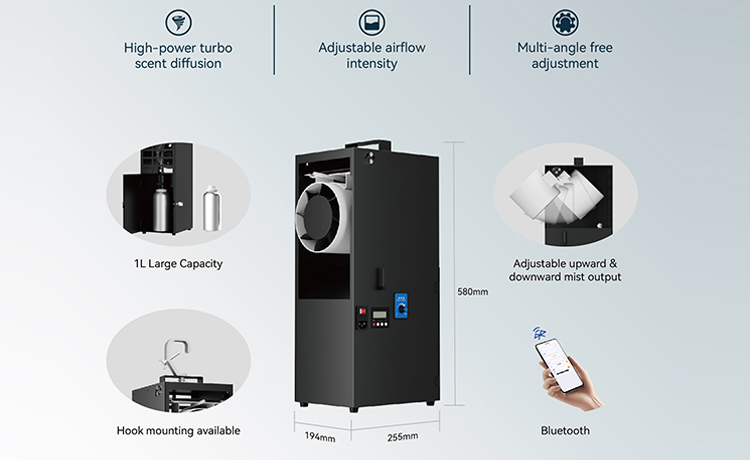

255×194×580mm |
AC100/220V / 50W |
5000㎡ / 15000m³ |
Floor standing / Wall mounted / Ceiling hanging |
12kg / 13kg |
| Noise |
Atomization Type |
Oil Consumption |
Oil Capacity |
CTN Size |
| < 68dB |
Two-fluid atomization |
8g/h ±0.8g/h |
1000mL |
300×270×640mm |
How to Choose an Outdoor Scent Machine for Events
When selecting an outdoor scent machine, event organizers should consider more than the manufacturer's maximum rated coverage area.
|
Selection Factor
|
What Buyers Should Consider
|
|
Event Area
|
Total site area and specific zones requiring fragrance
|
|
Outdoor Conditions
|
Fully open, partially enclosed or covered spaces
|
|
Wind Direction
|
Prevailing wind and expected changes during event hours
|
|
Venue Layout
|
Entrances, seating areas, stages and visitor circulation
|
|
Operating Duration
|
Total hours of fragrance diffusion per event
|
|
Fragrance Oil Consumption
|
Expected consumption and refill planning
|
|
Power Supply
|
AC power availability and cable protection
|
|
Installation
|
Stable positioning, secure mounting and weather protection
|
|
Number of Machines
|
Single-zone or multi-zone fragrance requirements
|
How Many Outdoor Scent Machines Are Needed?
The B5000A has a maximum rated coverage of 5,000 m² / 15,000 m³. However, this figure should not be used as a guaranteed outdoor coverage radius.
For an event with multiple separated visitor zones, several machines may be more effective than one centrally positioned diffuser.
The recommended quantity should be determined by site layout, prevailing wind, desired fragrance intensity, and event operating requirements.
Outdoor Scent Machine Placement and Installation Guide
Correct installation is especially important for outdoor fragrance diffusion.
|
Installation Consideration
|
Recommendation
|
|
Wind Direction
|
Where practical, position the machine upwind of the intended fragrance area
|
|
Weather Protection
|
Use a suitable sheltered location and protect the unit from rain
|
|
Power Connection
|
Provide protected electrical connections appropriate to the installation
|
|
Equipment Stability
|
Secure the unit against accidental movement or tipping
|
|
Diffusion Direction
|
Adjust outlets toward the intended guest area
|
|
Guest Comfort
|
Avoid concentrated fragrance discharge directly into occupied seating
|
|
Maintenance Access
|
Leave sufficient space for oil refilling and inspection
|
Important: The B5000A is marketed for outdoor events, but the current website does not publish a waterproof or IP protection rating. Therefore, outdoor suitability should not be interpreted as permission to expose the equipment directly to rain or severe weather.
Fragrance Oil Consumption and Event Planning
The B5000A has a published fragrance oil consumption rate of 8 ± 0.8 g/h.
The following table illustrates consumption at the nominal 8 g/h rate under continuous operation.
|
Event Duration
|
Estimated Oil Consumption
|
|
2 hours
|
16 g
|
|
4 hours
|
32 g
|
|
6 hours
|
48 g
|
|
8 hours
|
64 g
|
|
10 hours
|
80 g
|
|
12 hours
|
96 g
|
These figures are planning estimates rather than guaranteed consumption. Actual usage depends on operating settings, duty cycles and fragrance characteristics.
The 1,000 mL oil reservoir capacity cannot be converted directly into a guaranteed number of operating hours without knowing the fragrance oil density and actual operating schedule.
Outdoor Scent Machine Maintenance
Before the Event
Check the fragrance oil level, power connection, atomization output, diffusion outlets and machine positioning.
During Operation
Monitor fragrance intensity, changes in wind direction and operating conditions. Adjust machine settings when necessary.
After the Event
Inspect the fragrance reservoir, clean accessible diffusion components according to the manufacturer's instructions, and store the equipment in a dry, protected location.
Routine Maintenance
Follow the manufacturer's guidance for atomizer cleaning, compatible fragrance oils and electrical inspection.
Need a Powerful Outdoor Scent Machine for Your Next Event?
BXScent offers the B5000A commercial outdoor scent diffuser for concerts, exhibitions, outdoor weddings, festivals, entertainment venues, and large promotional events.

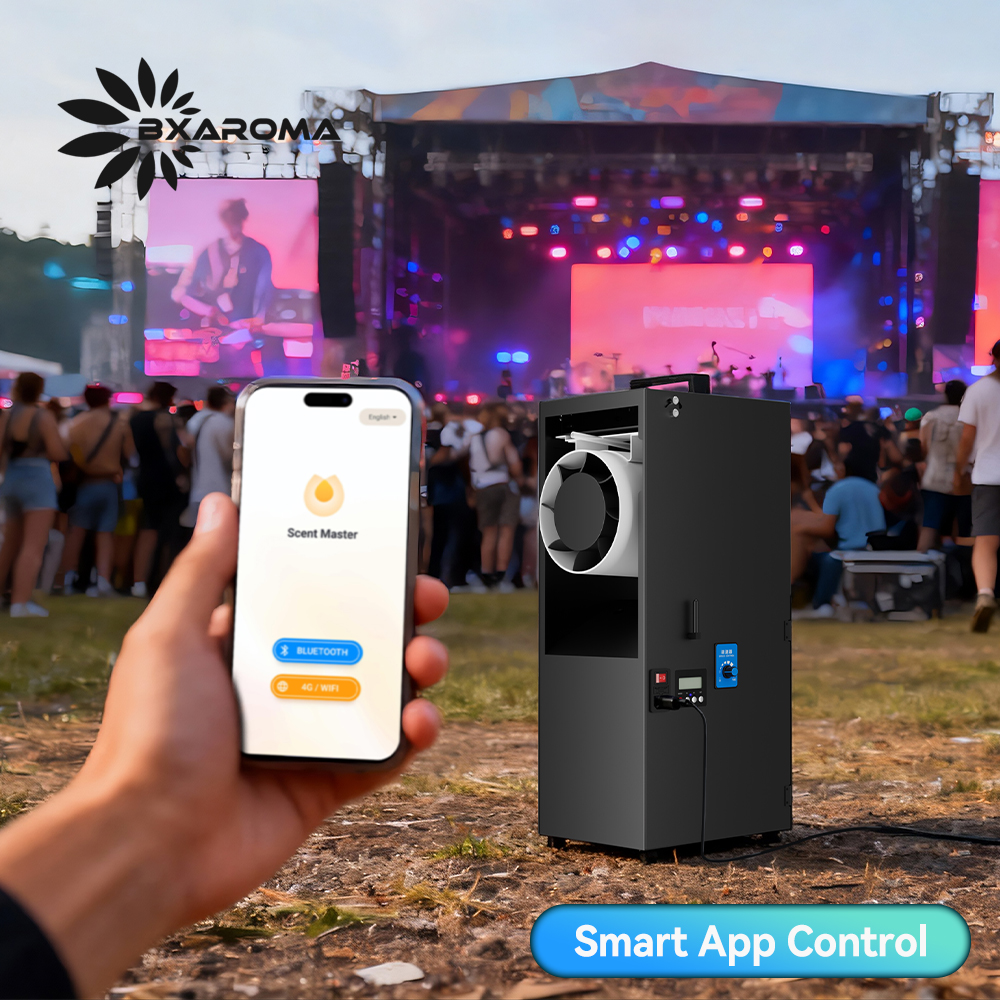

With turbo-assisted diffusion, adjustable fragrance outlets, Bluetooth control, and a 1,000 mL reservoir, the B5000A provides flexible scenting options for large event environments.
Share your event area, expected operating hours, installation conditions and order quantity with our team to discuss a suitable fragrance diffusion arrangement.
Contact BXScent for B5000A Product Details and a Commercial Quotation.
